Piezo-Electric Respiration (PZT) Sensor

Description

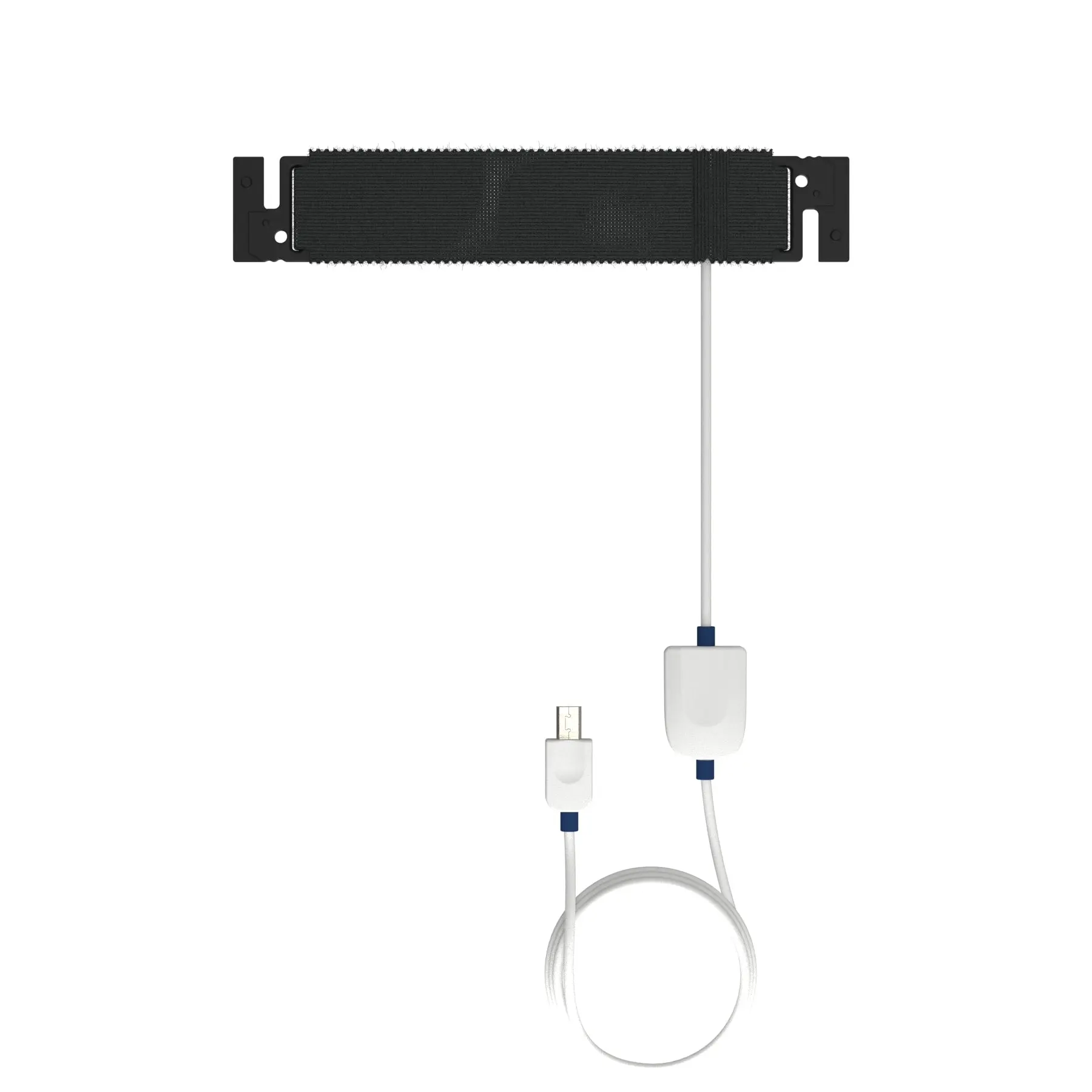

The biosignalsplux piezoelectric Respiration (PZT) sensor is an entry-level and affordable solution for basic respiration data acquisition. This sensor consists of a wearable chest-belt with an integrated localized sensing element that measures displacement variations caused by the volume changes of the thorax or abdomen during respiratory cycles (inhaling/exhaling).

The elastic chest-belt can be adjusted in length to be applicable on different anatomies (e.g. male and/or female), body locations (e.g. thorax and/or abdomen), and thorax/abdomen circumferences. Typical applications of this sensor include respiration monitoring to determine respiration cycles, rates, relative amplitudes, and other features.

Features

• Piezo-electric film technology
• Displacement measurement
• Raw data output
• Adjustable elastic chest strap
• Pre-conditioned analog output
• Ready-to-use & miniaturized form-factor

Specifications

• Type: Piezoelectric
• Range: ±1.50 V
• Gain: 1
• Consumption: 35 uA
• CMMR: ≥ 106 dB
• Cable Length: 100cm±0.5cm (customizable; extra costs may apply)
• Connector Type: UC-E6 (male; must be connected to a biosignalsplux acquisition unit)
• Max sensor belt length: 70cm (belt) + 14cm (sensor) , total 84cm
• Min sensor belt length: 38cm (belt) + 14cm (sensor), total 52cm

Downloads

• Respiration (PZT )User Manual
• Respiration (PZT) Datasheet

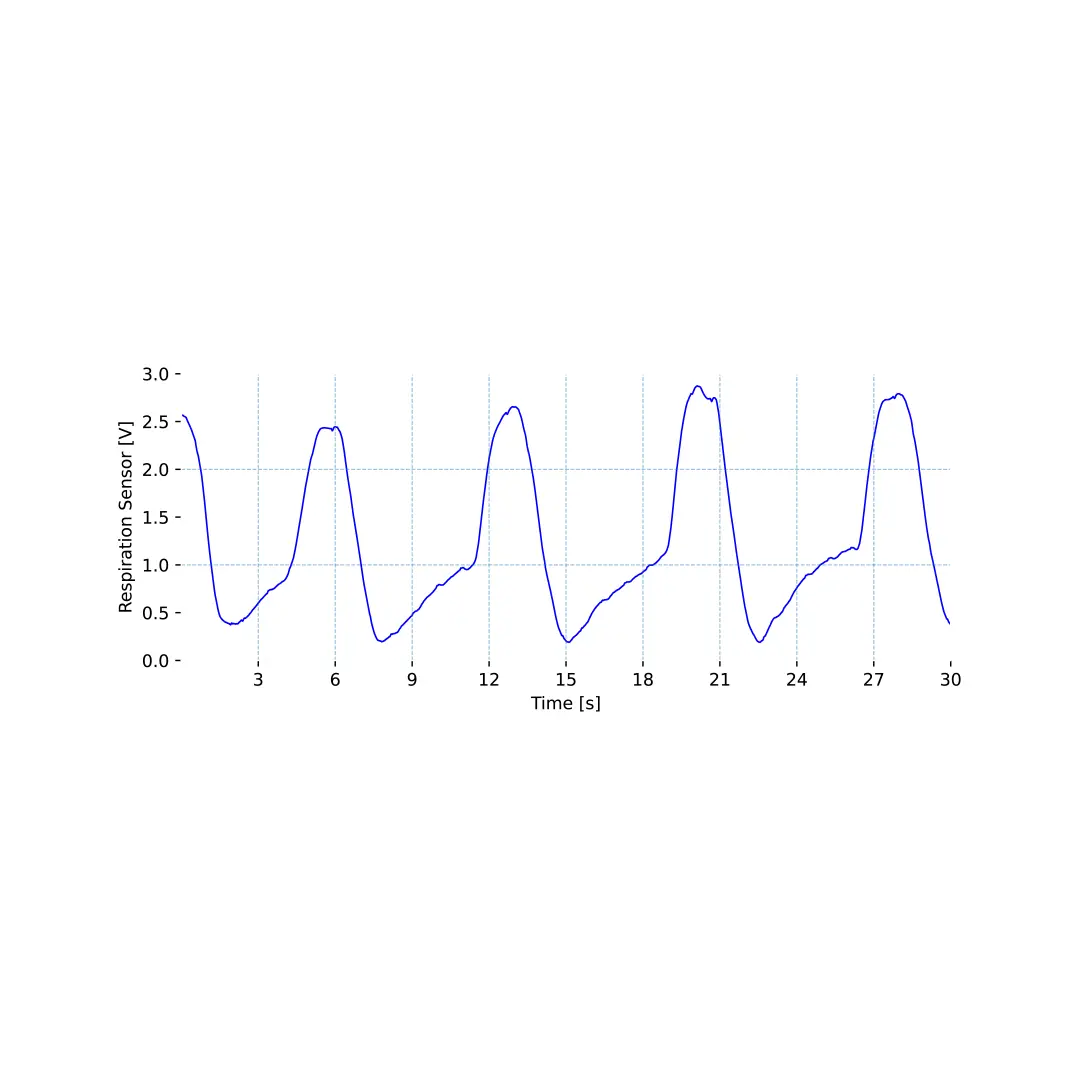

• Signal Sample (.ZIP)
