Electroencephalography (EEG) Sensor

Electroencephalography (EEG) Sensor

Description

Purpose-built sensor for brain activity measurement.

Features

  • Arduino compatible
  • Voltage differential measurement

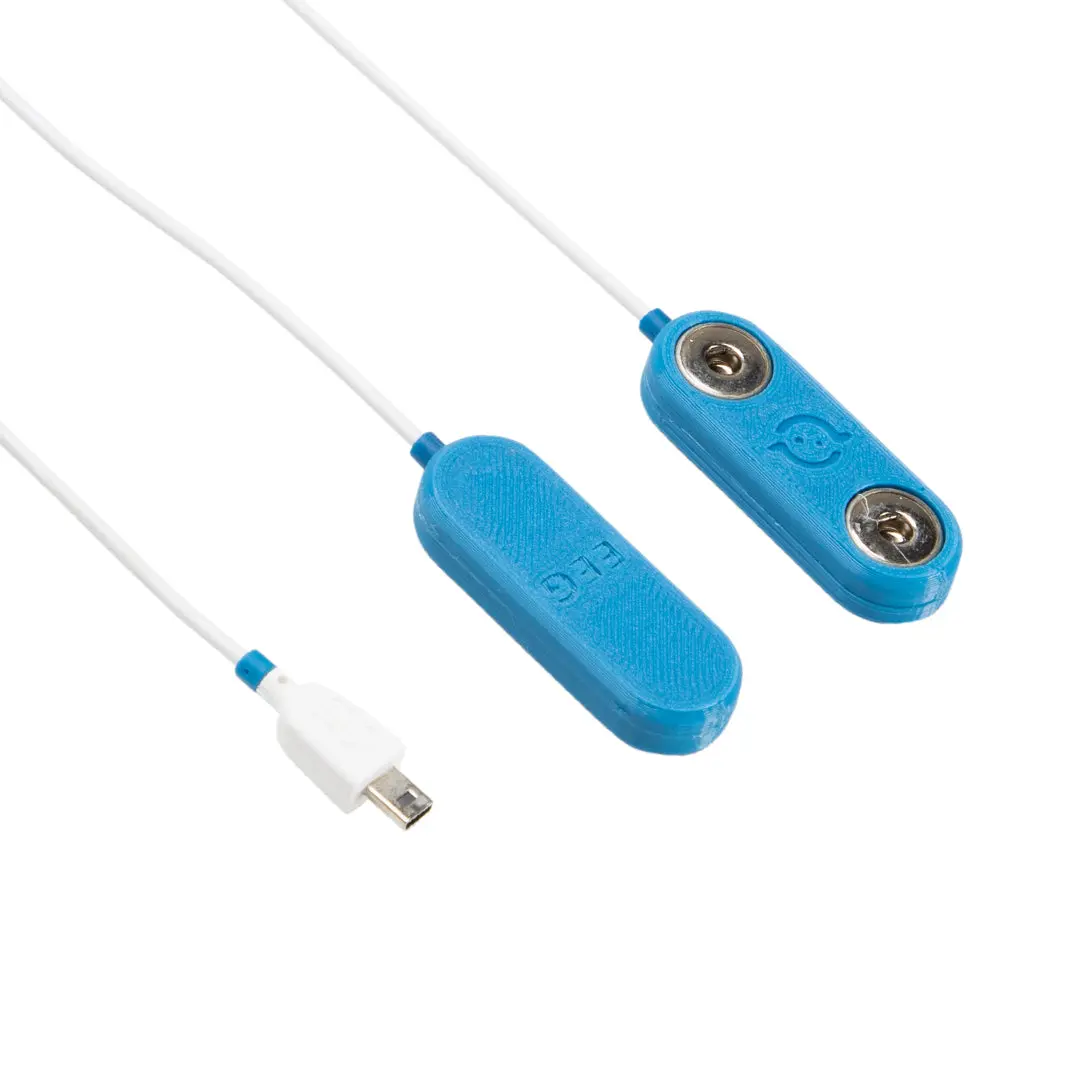

  • 3- or 2-lead electrode cable operation (only one REF is needed when using multiple EEGs)
  • Gain: 40000
  • Range: ±40uV
  • Bandwidth: 0.8-49Hz
  • CMRR: 110dB
  • Input impedance: 100GOhm
Compatibility:
  • This sensor is only compatible with BITalino acquisition system


Downloads

  • EEG Sensor Datasheet

Select Connectors
From $4.88

Original: $13.94

-65%
Electroencephalography (EEG) Sensor—

$13.94

$4.88
Product image 1
Product image 2
Product image 3
Product image 4
Product image 5
Product image 6

Description

Description

Purpose-built sensor for brain activity measurement.

Features

  • Arduino compatible
  • Voltage differential measurement
  • 3- or 2-lead electrode cable operation (only one REF is needed when using multiple EEGs)
  • Gain: 40000
  • Range: ±40uV
  • Bandwidth: 0.8-49Hz
  • CMRR: 110dB
  • Input impedance: 100GOhm
Compatibility:
  • This sensor is only compatible with BITalino acquisition system


Downloads

  • EEG Sensor Datasheet
