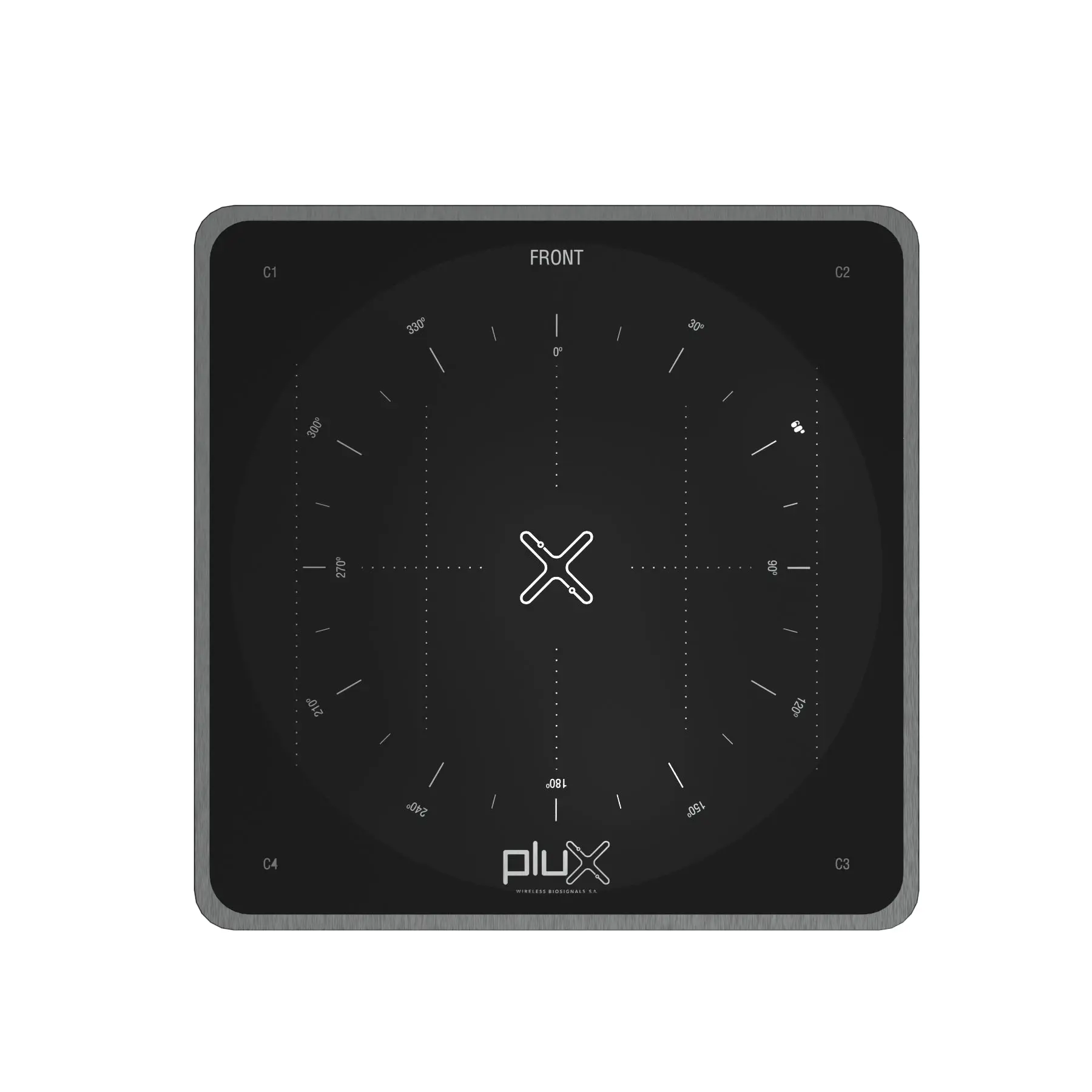

Force Platform
Description
This multipurpose force platform is intended to be used together with our biosignalsplux kits. Its versatile design enables a wide range of applications such as jump analysis, center of mass distribution, weight assessment, force production capacity, and others. Multiple configurations and measurement range options are available.
Features
- Portable & wireless sturdy force platform made out of aluminum
- 4 individual channels (1 per cell)
- High signal-to-noise ratio
- Pre-conditioned analog output
- Jump analysis
- Includes a storage & carrying bag
Specifications
- Material: Sturdy aluminium
- Size: 45cm x 45cm
- Height: Adjustable to level out the platform (up to 10 cm)
- # of Load Cells: 4 (one in each corner)
- Maximum load: 200kg per Load Cell
- Weight: 13kg
- Cable Length: 100cm±0.5cm (customizable; extra costs may apply)
- Connector Type: UC-E6 (male; must be connected to a biosignalsplux acquisition unit)
Important Notes:
- This sensor requires the use of a signal acquisition unit (to complete your system you can check our biosignalsplux Explorer Kit)
- This is not compatible with our Teaching Units, namely the BITalino systems
Downloads

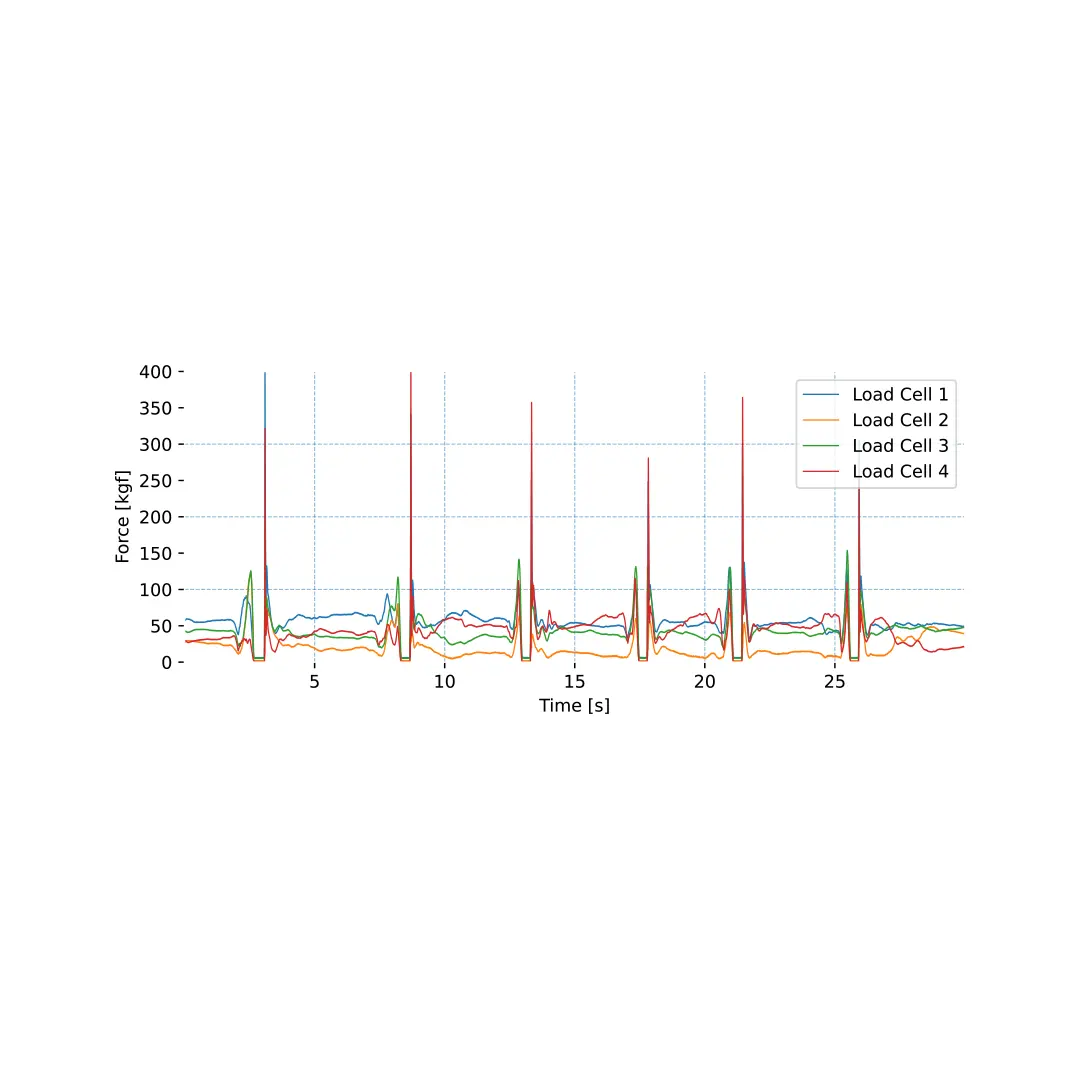

- Force Platform Sample Signal
- Force Platform User Manual
- Force Platform Datasheet
- OpenSignals (r)evolution (Windows, macOS, Linux)
