Electrocardiography (ECG) Sensor

Electrocardiography (ECG) Sensor

Description

Purpose-built sensor to measure the electrical activity of the heart.

Features

  • Arduino-compatible
  • Voltage differential measurement
  • 3- or 2-lead electrode cable operation
  • Gain: 1100
  • Range: ±1.5mV
  • Bandwidth: 0.5-40Hz
  • CMRR: 80dB
  • Input impedance: 10GOhm
Compatibility:
  • This sensor is only compatible with BITalino acquisition system


Downloads

  • Electrocardiography (ECG) Sensor Datasheet

Select Connectors
From $13.94
Electrocardiography (ECG) Sensor—
$13.94

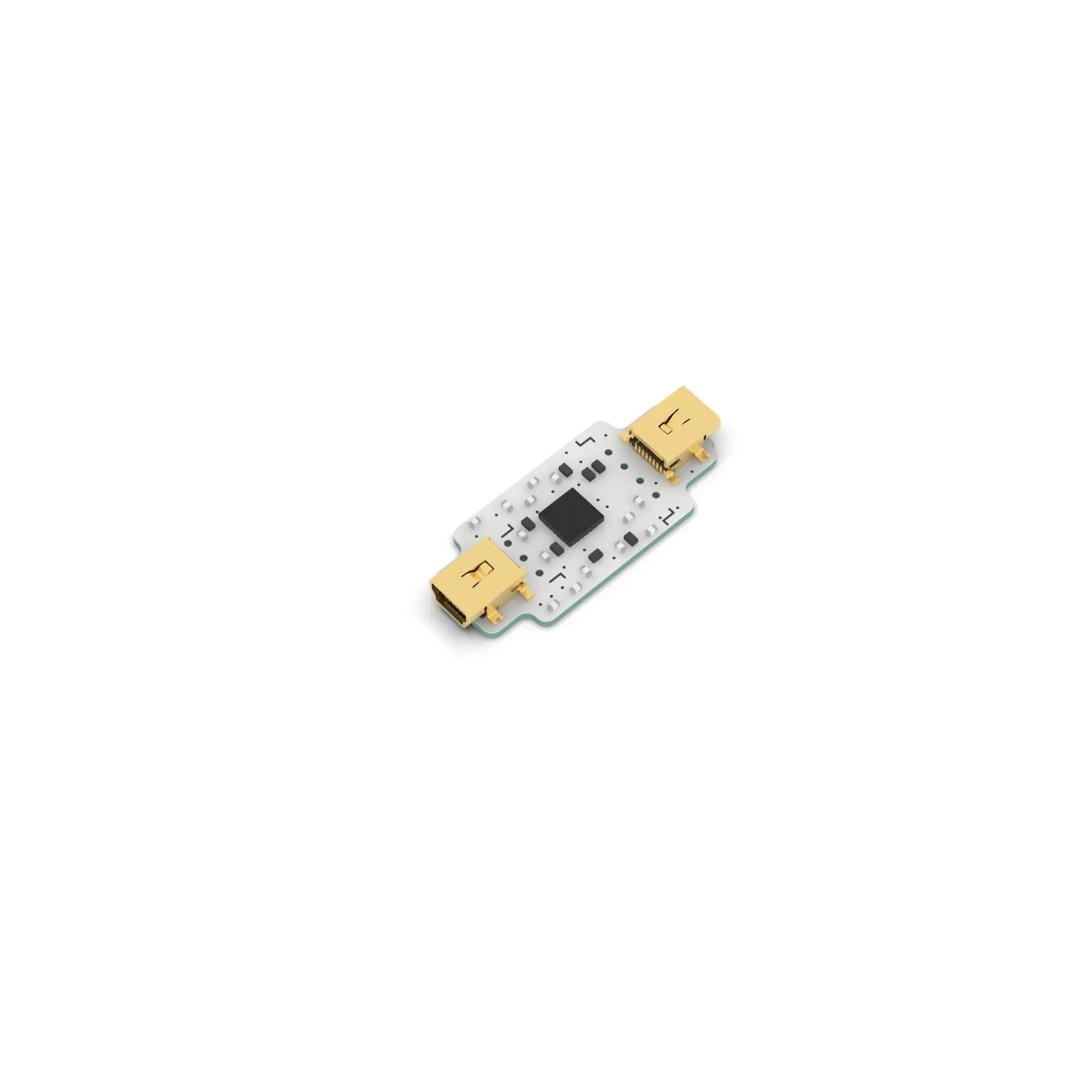

Product image 1
Product image 2
Product image 3
Product image 4
Product image 5

Description

Description

Purpose-built sensor to measure the electrical activity of the heart.

Features

  • Arduino-compatible
  • Voltage differential measurement
  • 3- or 2-lead electrode cable operation
  • Gain: 1100
  • Range: ±1.5mV
  • Bandwidth: 0.5-40Hz
  • CMRR: 80dB
  • Input impedance: 10GOhm
Compatibility:
  • This sensor is only compatible with BITalino acquisition system


Downloads

  • Electrocardiography (ECG) Sensor Datasheet
